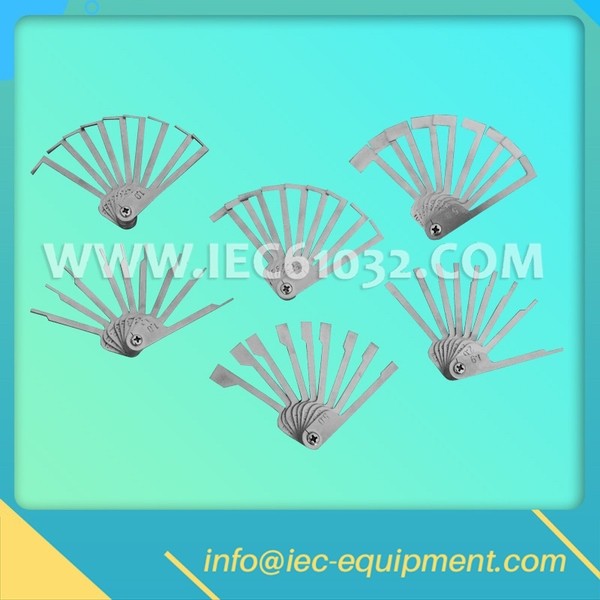

1 ~ 10 mm Creepage / Clearance Gauges (27-Size)

• The Gauge Set measures creepage and clearance distances, distances through insulation and other spacings. The set can be used for compliance testing of electronic equipment and other products as required by all international standards.

• It is used to determine the shortest path between two conductive parts, or between a conductive part and the bounding surface of the equipment, measured along the surface of the insulation, with specifications made according to the requirements.

• Creepage distance test card is made of whole stainless steel.

27-Size:
1.0 ~ 1.8 mm: 1.0 / 1.1 / 1.2 / 1.3 / 1.4 / 1.5 / 1.6 / 1.7 / 1.8;
1.9 ~ 4.5 mm: 1.9 / 2.0 / 2.5 / 2.8 / 3.0 / 3.2 / 3.3 / 4.0 / 4.5;
5.0 ~ 10.0 mm: 5.0 / 5.5 / 6.0 / 6.3 / 6.4 / 7.0 / 8.0 / 9.0 / 10.0.

Standards: According to IEC60598, IEC60335, IEC60601, IEC60065.

Type: Straight, Bend (according to test condition).
