- IPX5 IPX6 Water Jets Nozzle IPX5 IPX6 Water Jets Nozzle (Interchangeable)
- Item LX-IPX56H
This tester is used for the verification test of the degree of protection to the risk of water penetration provided by the
wrapper of equipment in fulfillment of IPX5 and IPX6 according to the IEC 60529 Section 14.2.5. & 14.2.6.
The device consists of a jet handle that is equipped with a pressure gauge flow valve.
The interchangeable nozzles assemble easily to the jet handle. The nozzles are made from stainless steel.
| Item | IPX5 | IPX6 |
| The nozzle diameter | 6.3 mm | 12.5 mm |
| Testing time | Not less than 1min/m2 (not less than 3 mins) | |
| The distance from jet nozzle to enclosure | 2.5~3m | |
| Pressure Gauge | 0 - 2.5 bar ( 0 - 0.25 MPa ) | |
| Reference standards | IEC60529,IEC60598-1,IEC60335-1,IEC60745-1 | |
| Nozzle Material | Stainless Steel | |

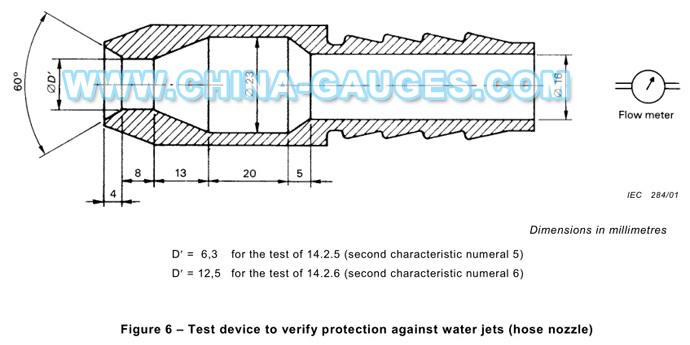

Figure 6 - Test device to verify protection against water jests (hose nozzle)
