EN 60350-2:2013 Standardised Cookware
Application:
The Standardised Cookware (Stainless Steel Pans) according to EN 60350-2:2013 requirements, mainly used to assess the energy efficiency of electromagnetic cooker test cookware.
Technical Parameters:

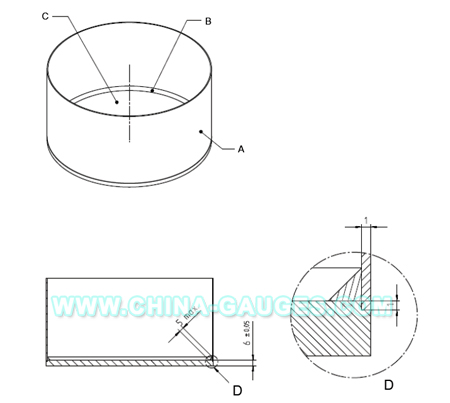

a) The Standardised Cookware bottom material is made of 1.4016 stainless steel, bottom thickness size is 6 mm ± 0.05 mm, bottom cannot be protrude outwards.
b) The Standardised Cookware walls material is made of 1.4301 stainless steel, walls thickness is 1 mm ± 0.05 mm, It does not have a handle and a protruding cylinder.

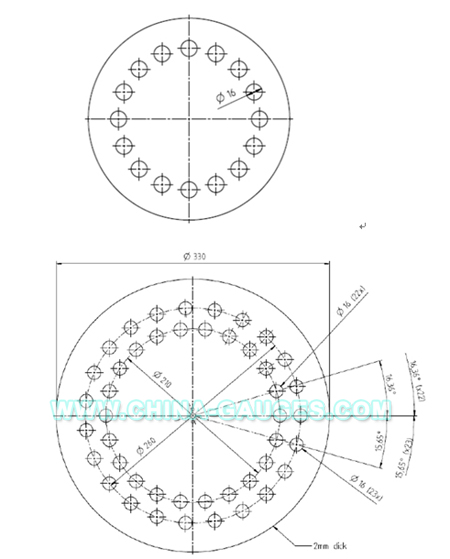

c) The Standardised Cookware lid material is made of aluminum, lid thickness is 2 mm ± 0.05 mm, diameter of each hole in the lid is 16 mm ± 0.1 mm, and holes are evenly distributed on the hole ring.

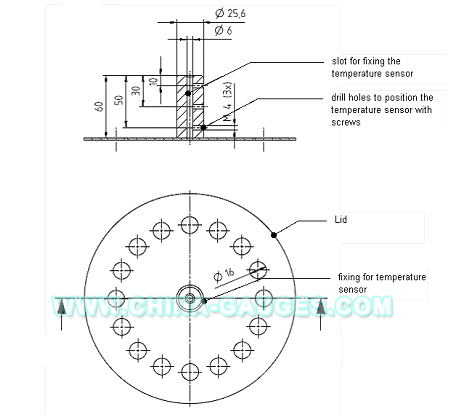

d) A fixture with a temperature sensor at the center of the lid, its material is plastic.
Specification:
|
Diameter of the cookware bottom (outside) mm |
Diameter of the lid mm |
Lid hole circle diameter mm |
Number of holes on the circle |
Total cookware height (outside) mm |
Flatness of cookware bottom mm |
Water load g |
Cooking zone size category mm |
Standardised cookware categories |
| 120 ± 0,5 | 130 ± 1 | 80 ± 1 | 7 | 125 ± 0,5 |
≥ 0 < 0,075 |
650 |
≥ 100 < 130 |
A |
| 150 ± 0,5 | 165 ± 1 | 110 ± 1 | 11 | 125 ± 0,5 |
≥ 0 < 0,075 |
1030 |
≥ 130 < 160 |
|
| 180 ± 0,5 | 200 ± 1 | 140 ± 1 | 16 | 125 ± 0,5 |
≥ 0 < 0,075 |
1500 |
≥ 160 < 190 |
B |
| 210 ± 0,5 | 230 ± 1 | 170 ± 1 | 22 | 125 ± 0,5 |
≥ 0 < 0,1 |
2050 |
≥ 190 < 220 |
C |
| 240 ± 0,5 | 265 ± 1 | 200 ± 1 | 29 | 125 ± 0,5 |
≥ 0 < 0,1 |
2700 |
≥ 220 < 250 |
|
| 270 ± 0,5 | 300 ± 1 | 230/210 a ± 1 | 18/18 a | 125 ± 0,5 |
≥ 0 < 0,15 |
3420 |
≥ 250 < 280 |
D |
| 300 ± 0,5 | 330 ± 1 | 260/210 a ± 1 | 23/22 a | 125 ± 0,5 |
≥ 0 < 0,15 |
4240 |
≥ 280 < 310 |
|
| 330 ± 0,5 | 365 ± 1 | 290/270 a ± 1 | 27/27 a | 125 ± 0,5 |
≥ 0 < 0,15 |
5140 |
≥ 310 ≤ 330 |
|
| a Number of holes are arranged on two hole circles. | ||||||||
