AS/NZS 3112 Figure B1 Gauge for Two-Pin Flat-Pin 125 V Max. Plugs (With Parallel Pins)
1. Application:
This plug and socket test gauge is mainly used to test and inspect whether the structure and size of Australian/New Zealand Standard plugs and sockets conform to AS/NZS 3112 standards. And the mainly application industries is electronics, electrical appliances, plugs and sockets and other similar areas.
2. Features:
Gauge dimensions, tolerances, material, hardness, surface roughness conform to the standards requirements;
Material hardness is more than 50HRC; Material thermal expansion coefficient is small,dimensions and tolerances is stable and reliable.

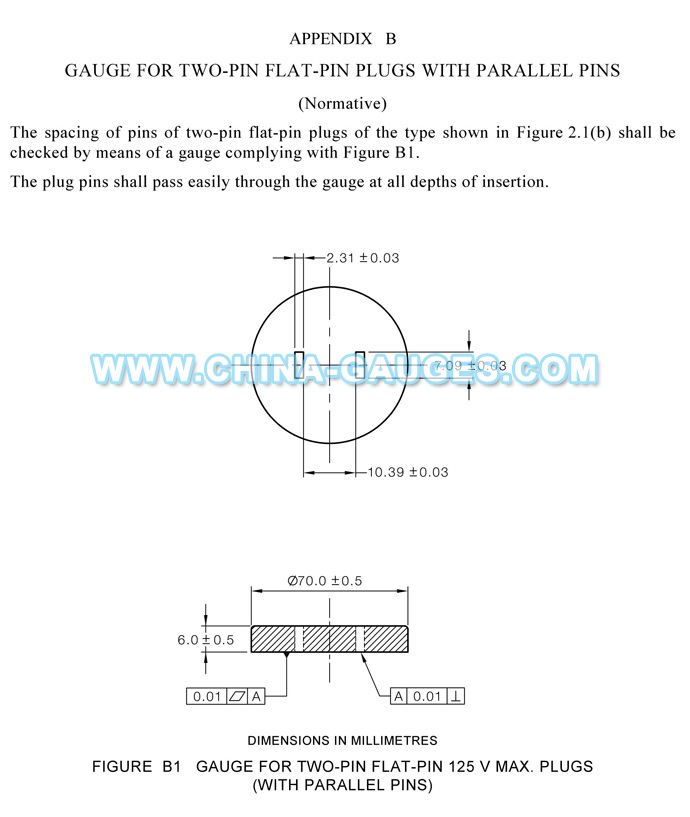

The spacing of pins of two-pin flat-pin plugs of the type shown in Figure 2.1(b) shall be checked by means of a gauge complying with Figure B1.
The plug pins shall pass easily through the gauge at all depths of insertion.
