IPX5 Jet Nozzle of Diameter 6,3 mm
  • prev
  • Next





This tester is used for the verification test of the degree of protection to the risk of water penetration provided by the wrapper of equipment in fulfillment of IPX5 according to the IEC 60529.


Item

IPX5

Water supply

Water flow rate >12.5L/min¡À5% clean water witho ut  inclusion.

The nozzle diameter

6.3   mm

Water flow

12.5 L/min

Testing time

Not less than 1min/m2 (not less  than 3 mins)

The distance from jet nozzle to  enclosure

2.5~3m

Pressure Gauge

0 - 0.25 MPa

Reference standards

IEC60529,IEC60598-1,IEC60335-1,IEC60745-1

Nozzle Material

Stainless Steel

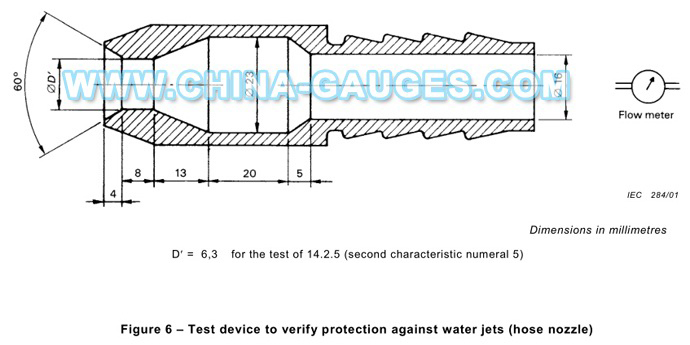

Figure 6 - Test device to verify protection against water jests (hose nozzle)
